TELEDYNE FLIR - SIRAS
*PLEASE CONTACT FOR MORE INFORMATION*

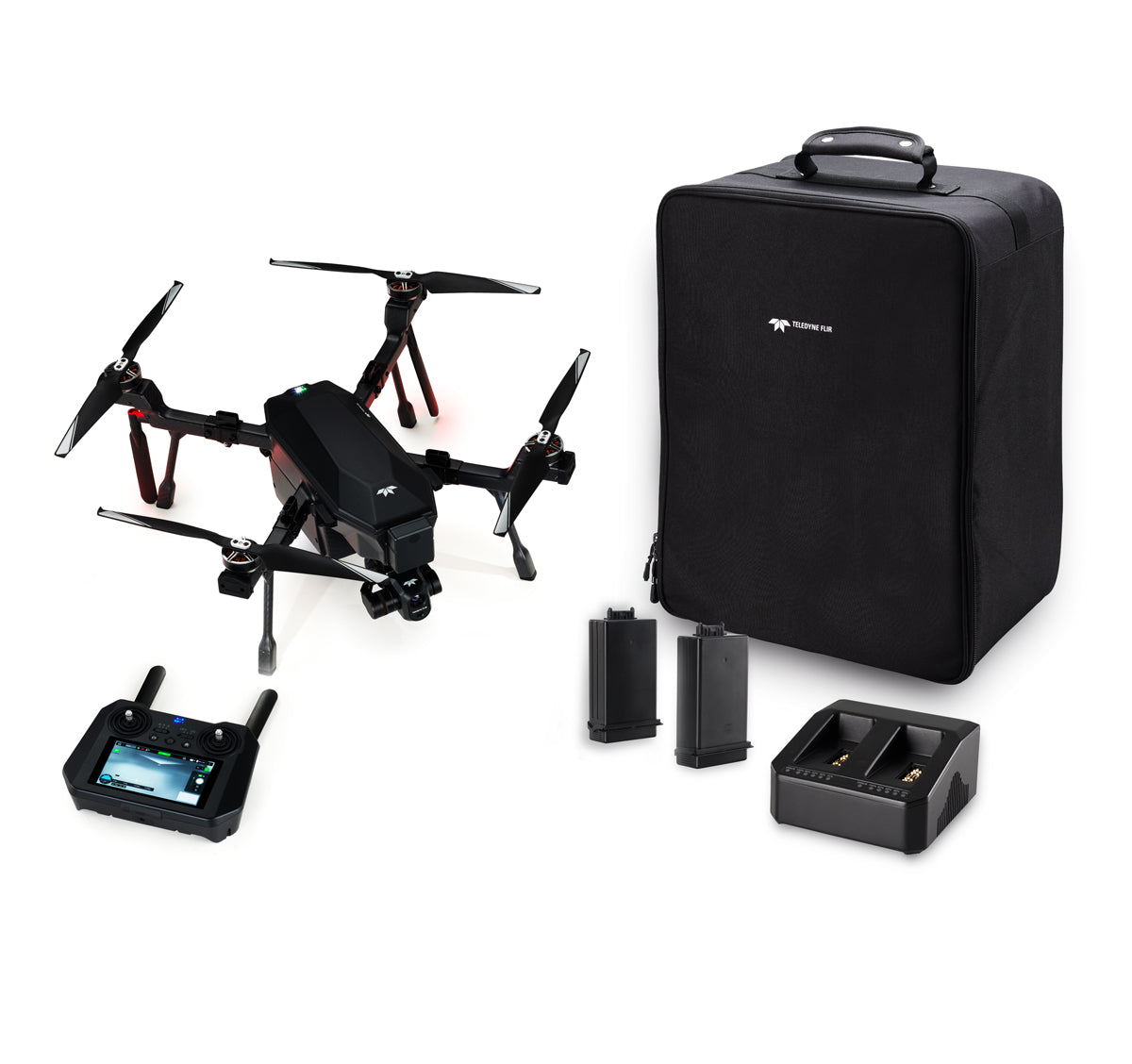

Includes

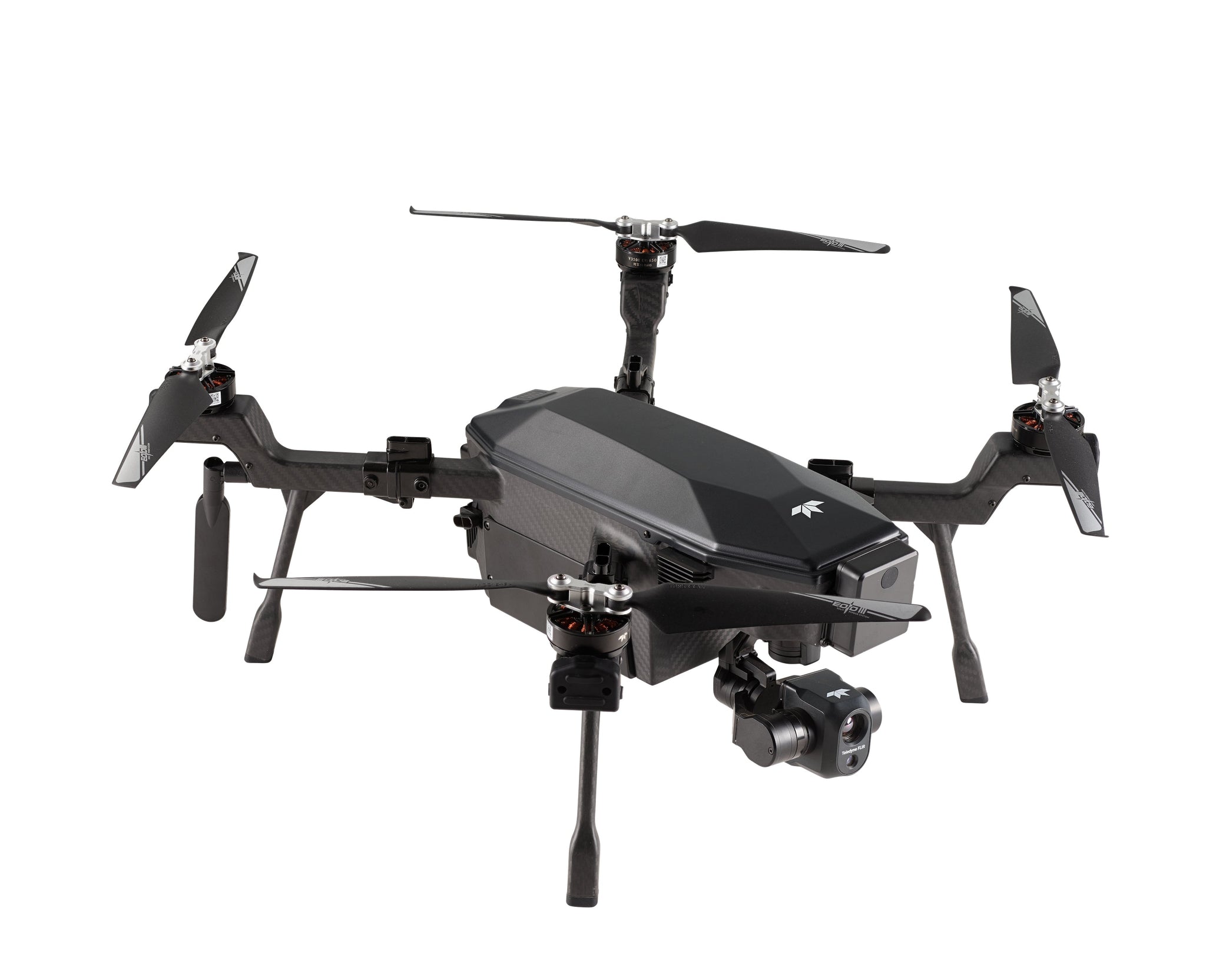

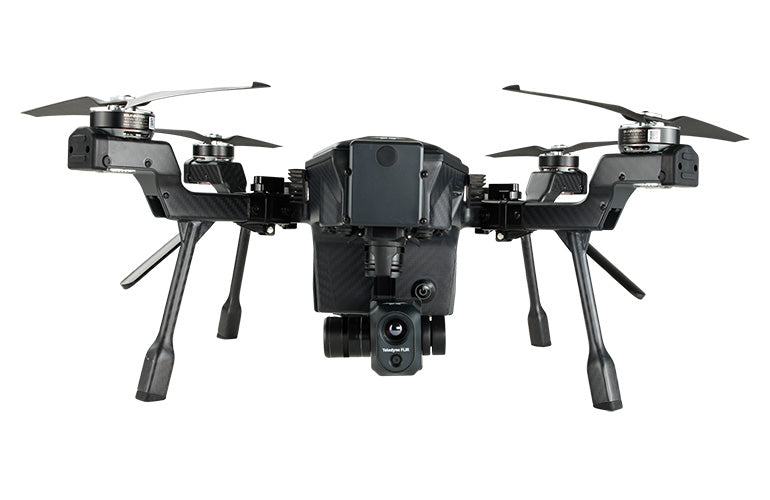

- SIRAS airframe x 1
- Vue TV32 Payload x 1

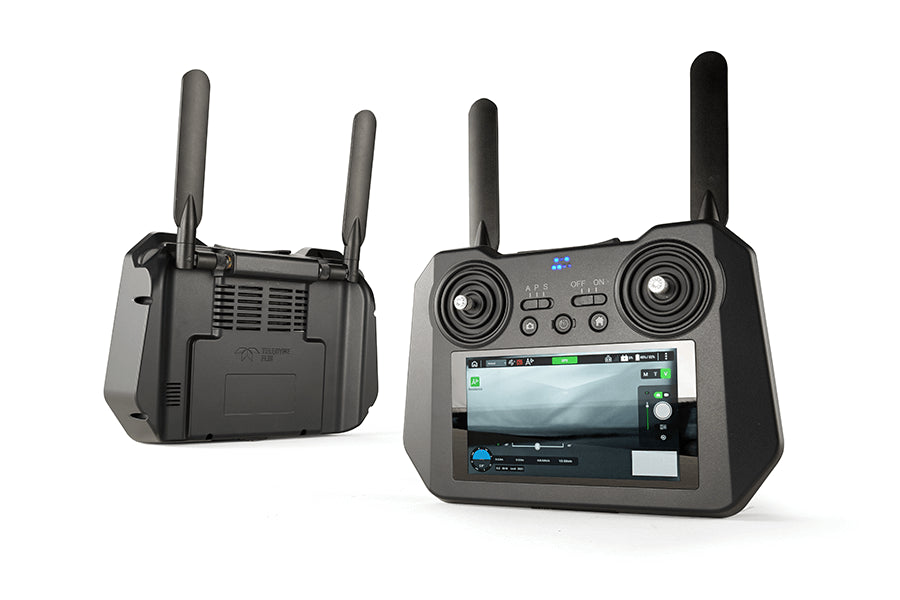

- Remote Controller w/built-in screen

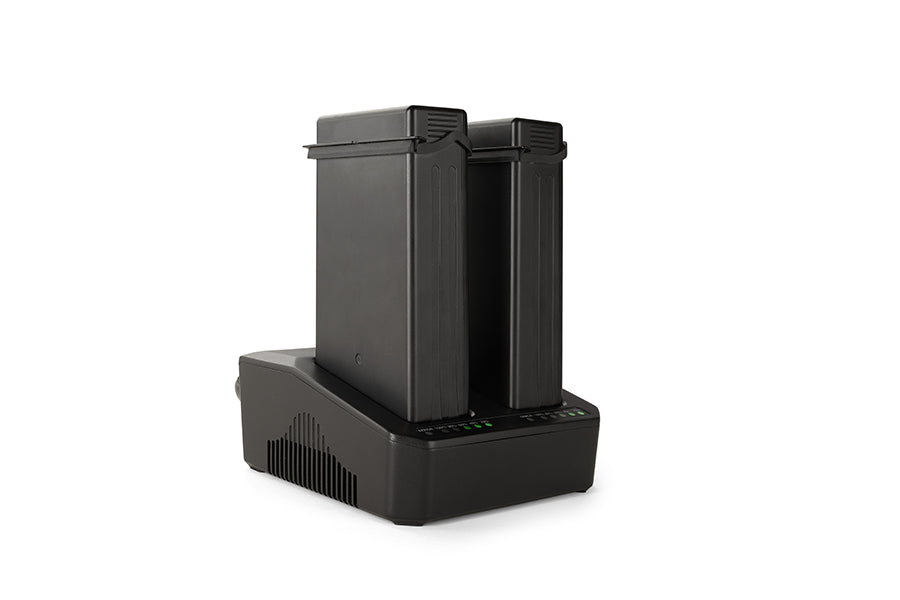

- Battery Charger x 1
- Propeller set x 1
- Batteries x 2
- Soft case
SIRAS is an affordable, easy-to-fly, IP54-rated professional drone with an interchangeable payload system for industrial and utilities inspection, firefighting, law enforcement, and search and rescue missions. With front collision avoidance, hot swappable batteries, a 31-minute flight time, and no restrictive geofencing, professional UAV pilots can fly safely when and where the mission demands.

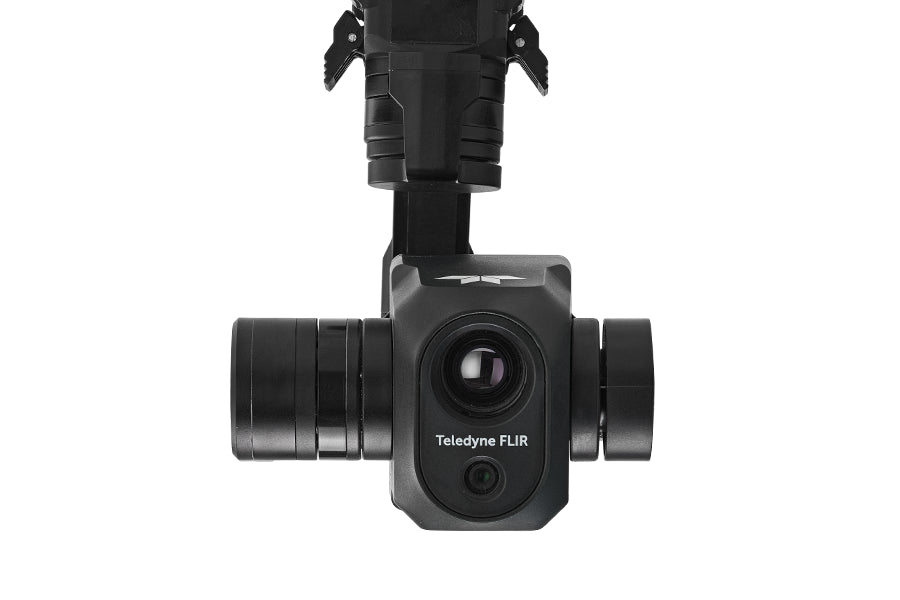

The quick-connect Vue® TV128 payload features patented MSX® technology, adding visible-light outlines to thermal imagery to provide critical information in real time. The 16MP visible camera delivers clear, pinpoint details with a 128x zoom. A 640x512-pixel, radiometric FLIR Boson® provides sharp thermal imagery, 5x digital zoom, accurate temperature-measurement, and compatibility with FLIR Thermal Studio™ analysis software.
Designed for data security, SIRAS stores imagery on an onboard microSD card and does not include cloud connection capability. To further protect data chain of custody, pilots are not required to create an online profile, increasing ease of use and reducing potential unintended online data access. SIRAS provides best-in-class imagery, mission flexibility, secure data, and compatibility with the leading photogrammetry software enabling the pros to get the job done.
SECURE FLIGHT DATA FROM AN AFFORDABLE AND FLEXIBLE AIRCRAFT
-
Operate in rugged environments with data security and flexibility for future payload needs
-
Data safely stored on an onboard microSD card
-
Online Teledyne FLIR account registration is not required for flight
-
Future-proofed with quick-connect, swappable gimbal
-
IP-54 rated dust and moisture resistance
SEE AND DO MORE WITH CLEAR THERMAL AND VISIBLE IMAGERY PLUS FLIR MSX
-
Real-time, high-resolution imagery provides critical data for immediate decision support and post-processing
-
Resolve critical detail in real time with FLIR MSX visible outlines on thermal images
-
Measure temperature and zoom up to 5x with 640x512 Boson thermal camera
-
Pinpoint details with 16MP visible resolution and 128x zoom
-
Post process imagery using FLIR Thermal Studio and leading photogrammetry software
FLY MISSIONS SAFELY WHERE AND WHEN NEEDED
-
Get in the air quickly without restrictive geofencing and fly for up to 31 minutes
-
Fly within one minute of power on with no geofencing
-
Maximize time in the air with 31 min flight time and hot-swappable batteries
-
Maintain connection around obstacles with dual-band 2.4/5.8 GHz
-
Detect objects day and night with radar-based front collision avoidance
SPECIFICATIONS
AIRCRAFT
- Collision Avoidance - Front Facing Radar: up to 30 m, when flying <5 m/sec speed Ground detection via underside sensors
- Default Ground Speed - 5 m/sec (11.2 mph)
- Disconnect Return To Home - Yes
- Foldable Props - Yes
- Geo-Fencing - None
- Hover Accuracy - Vertical: ± 0.5 m (± 1.6 ft) Horizontal: ± 1.5 m (± 5 ft)
- Ingress Protection - IP 54
- Maximum Ascent Speed - 6 m/sec (13.4 mph)
- Maximum Decent Speed - 4 m/sec (9 mph)
- Maximum Ground Speed - 18 m/sec (40 mph)
- Night Flight Beacons - Yes (red and white), on/off & blink options
- Operating Environment - -10°C to 40°C (10 °F to 104 °F)
- Take Off Readiness - 1 min after power ON
- Wind Resistance - 10 m/s (22.4 mph)
- BATTERY
- 20% Battery Warning - Yes, visual and audio signal
- Battery Power - 6,000 mAh
- Charging Temperature Range (Celsius) - 5 °C to 50 °C (41 °F to 122 °F)
- Charging Time - 45 min
- Hot Swappable Batteries - Yes
- Max Charging Current (A) - 6 A
- Maximum Flight Time - 31 min (rated)
- Maximum Hovering Time - 28 min (rated)
- Return To Home - Yes. 10% Battery
- Storage Temperature And Humidity - Room temperature and <70% is recommended
- GIMBAL
- Max Control Speed - 120°/sec (pitch, pan, roll)
- Maximum Rotational Range - Pan: ±90°; Pitch -120° to +30°
- Motion - 3-axis
- Stabilization - Plus / Minus 0.02°
- IMAGING & OPTICAL
- EO Camera Resolution - 16 MP with 20 MP mapping mode, 128x zoom
- FLIR MSX - Yes
- IR Camera Resolution - 640 x 512, radiometric, 5x zoom
- IR Video Frame Rate - 60 Hz
- Radiometric Features - Spot meter, Isotherms, Region of Interest (ROI)
- OTHER
- Maximum Descent Speed - 4 m/sec (9 mph)
- REMOTE CONTROLLER AND TRANSMISSION
- Built-In Battery - 300 min
- Display Brightness - 1,000 lumens
- Display Latency - <1 sec
- Layout - Mode 2
- Operating Distance - 9 km (6 miles)
- Operating Frequency - Dual Ban: 2.4 GHz / 5.8 GHz
- Transmission Quality -1080P, 30 fps
- STORAGE
- Internal Storage - Formatted 64 GB micro SD (provided with aircraft)
- SD Storage - 1 GB
