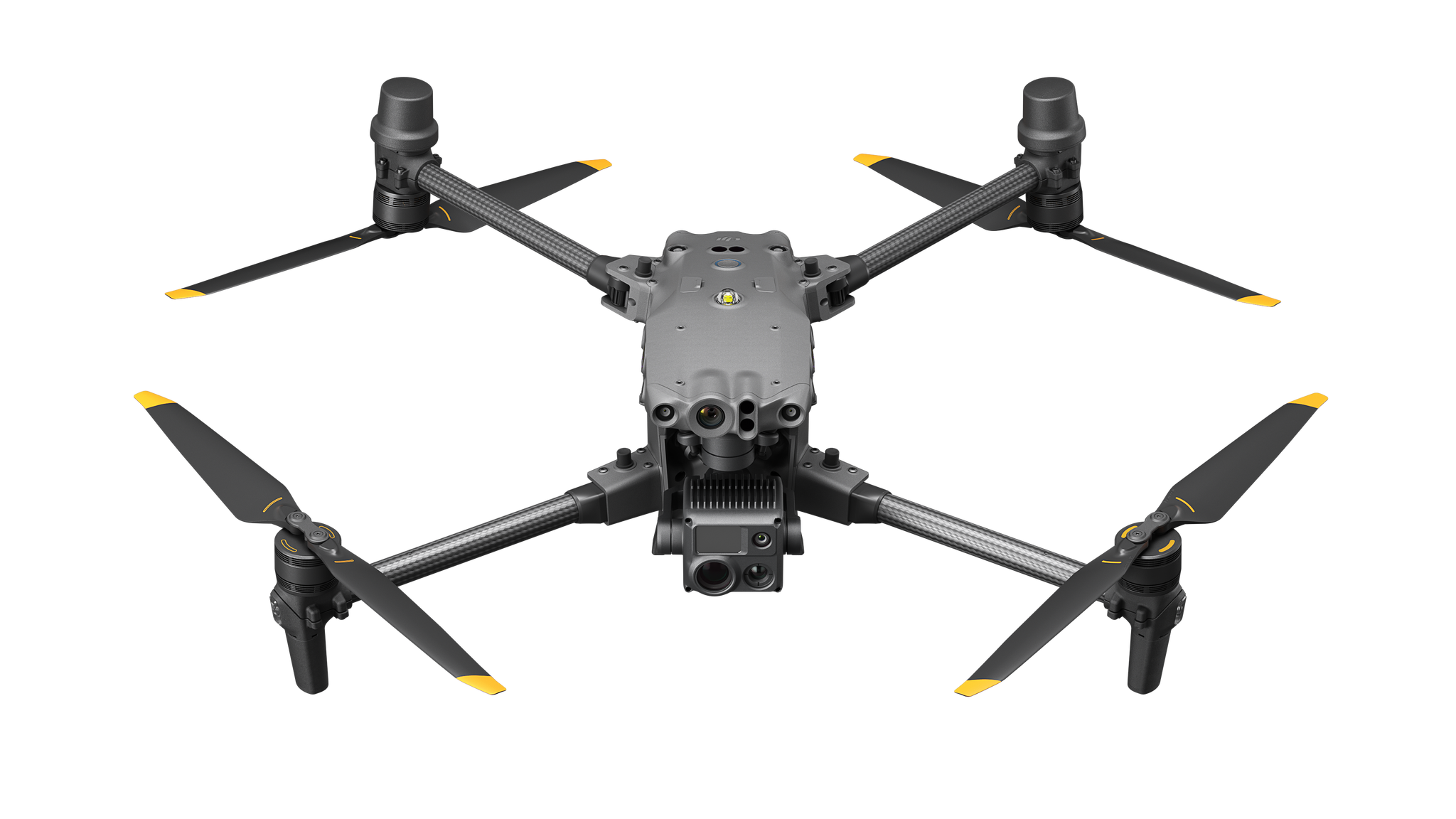

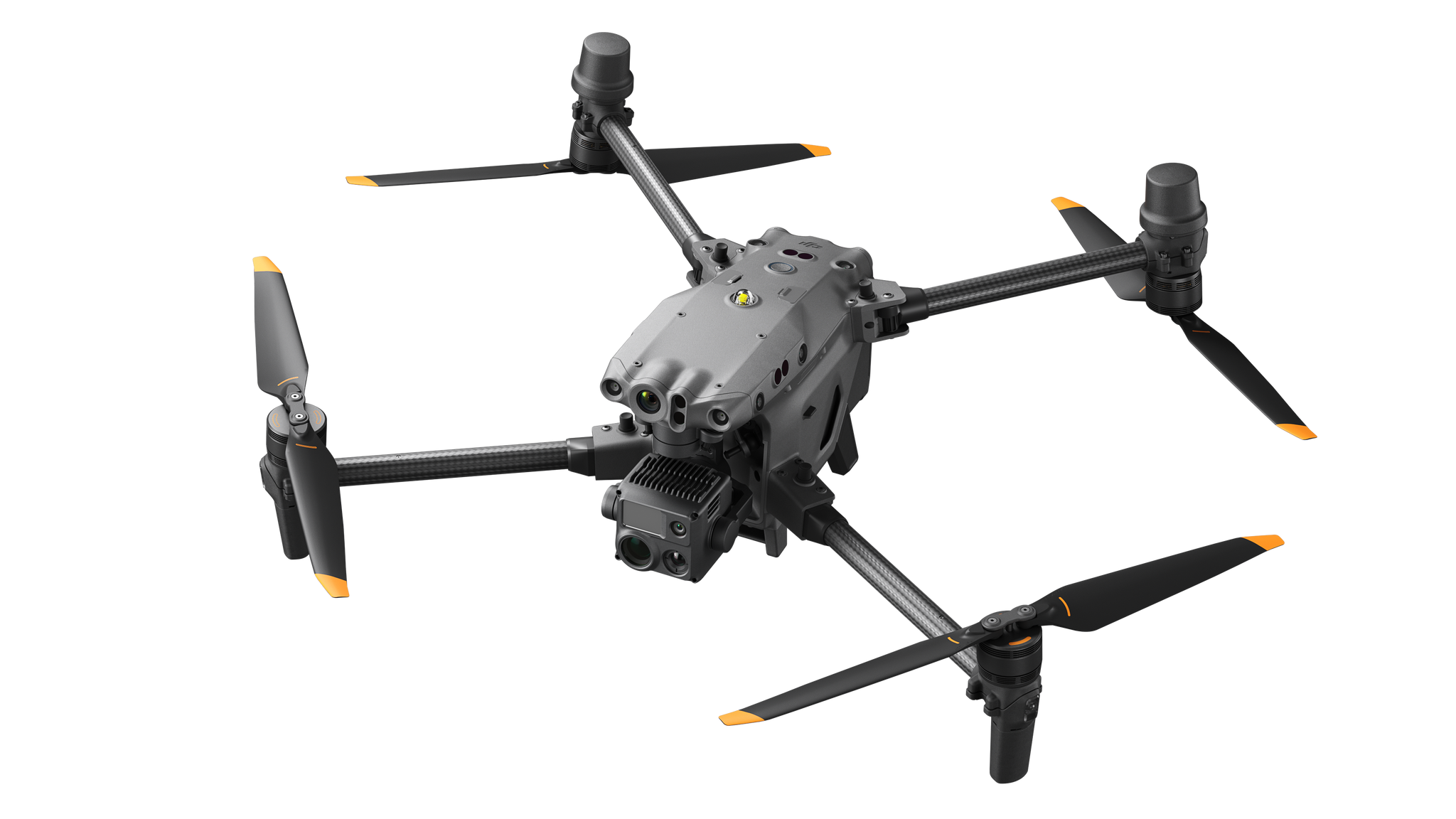

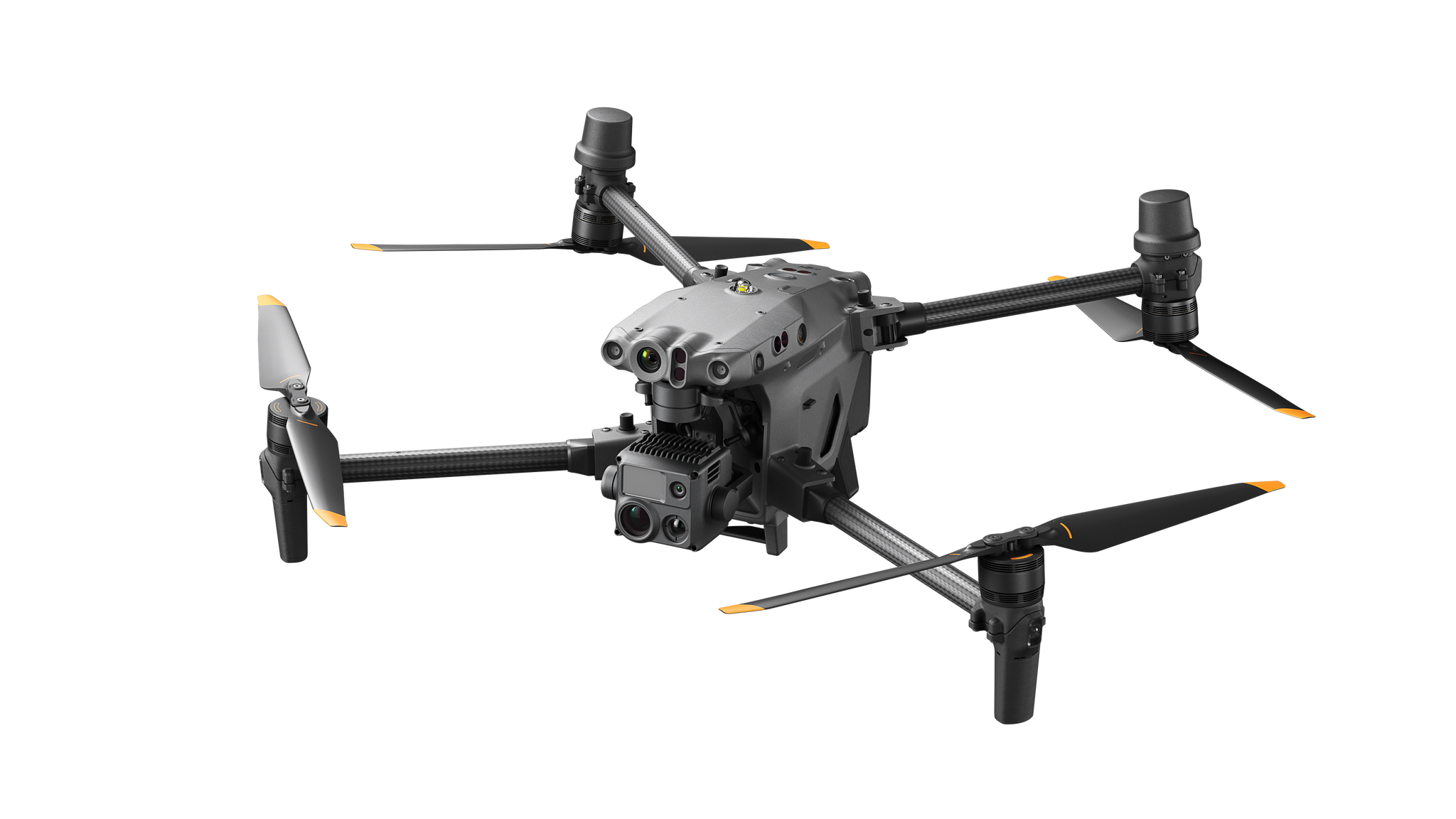

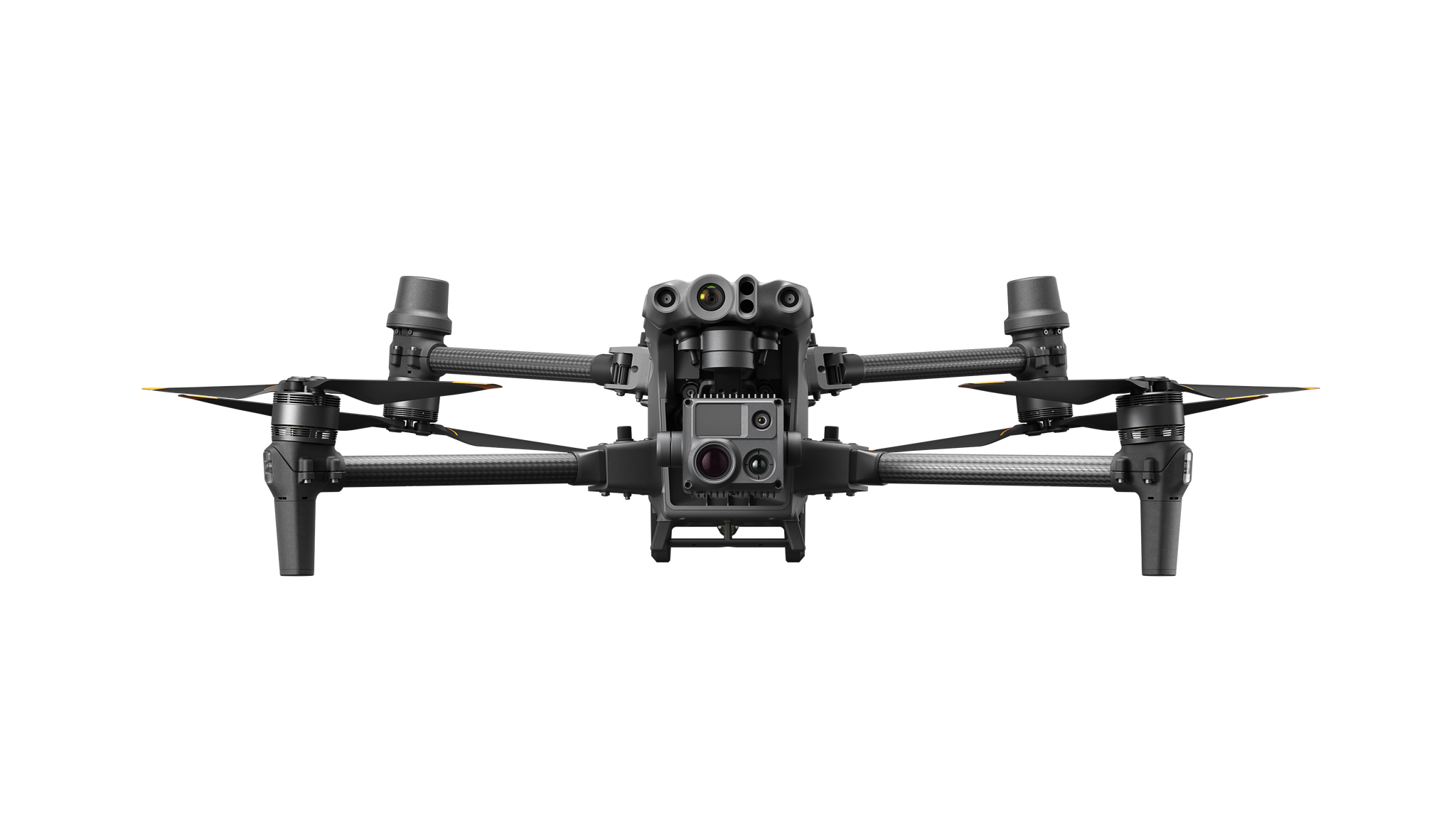

Matrice 30 Series

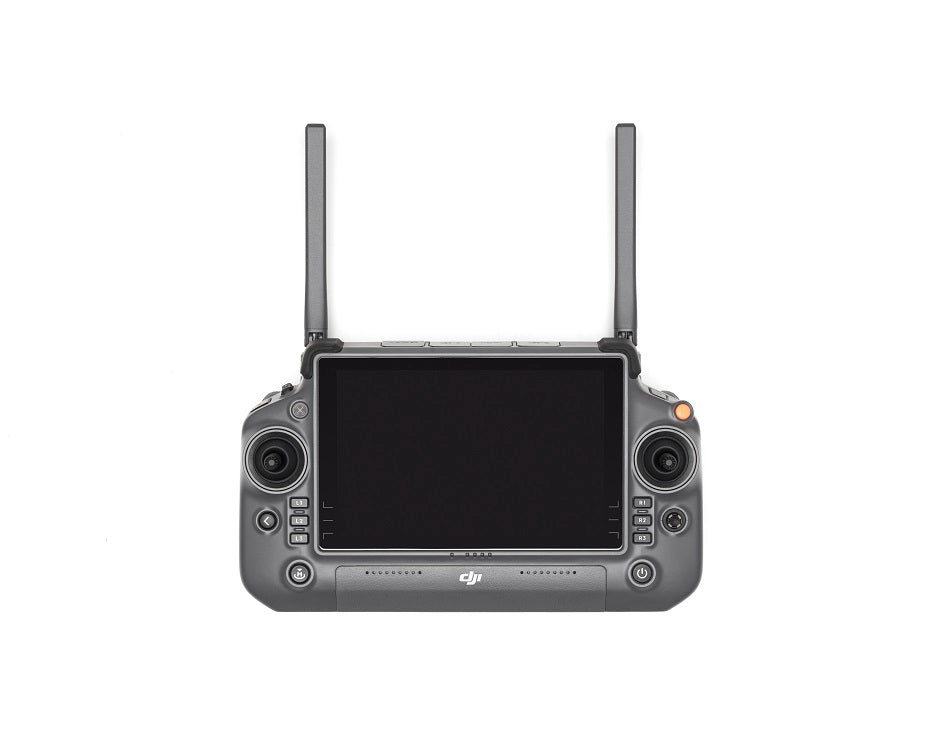

The M30 series drones (including DJI Matrice 30 and DJI Matrice 30T) are integrated with multiple high-performance sensors, lightweight and portable, and weatherproof, equipped with DJI RC PLUS enterprise remote control and the newly upgraded DJI Pilot 2 flight app for improved piloting efficiency and flight safety.

Unique aerial intelligence to capture everything

The M30 Series integrates wide, zoom, and thermal cameras (DJI Matrice 30T only) with a laser rangefinder, which together can capture the aerial data you need when you need it.

Wide Camera

Equivalent Focal Length: 24 mm, DFOV: 84° 12 MP 1/2'' CMOS Sensor

Video Resolution: 4K/30fps

Zoom Camera

48 MP 1/2'' CMOS Sensor 5×-16× Optical Zoom 200× Max. Hybrid Zoom Photo Resolution: 8K

Video Resolution: 4K/30fps

Thermal Imaging Camera Equivalent Focal Length: 40 mm Resolution: 640×512

Frame Rate: 30fps

Measurement Accuracy: ±2°C or ±2%

Laser Rangefinder

Range: 3 m - 1200 m Accuracy: ±(0.2m+D×0.15%)

Powerful Flight Performance

A balance of power and portability delivers higher operational efficiency. Max Flight Time: 41-min

Wind Resistance: 15 m/s Service Ceiling: 7000 m Max Speed: 23 m/s

Environmental Adaptability

With IP55 protection, the DJI Matrice 30 and DJI Matrice 30T can easily handle adverse weather and temperatures ranging from -20° C～50° C.

Safe and Reliable

Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.

Enhanced Transmission

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments. Bolster your connection with DJI Cellular Module, an optional 4G dongle that supports stable video transmission in complex, or remote work environments.

Lightweight and Portable

Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.

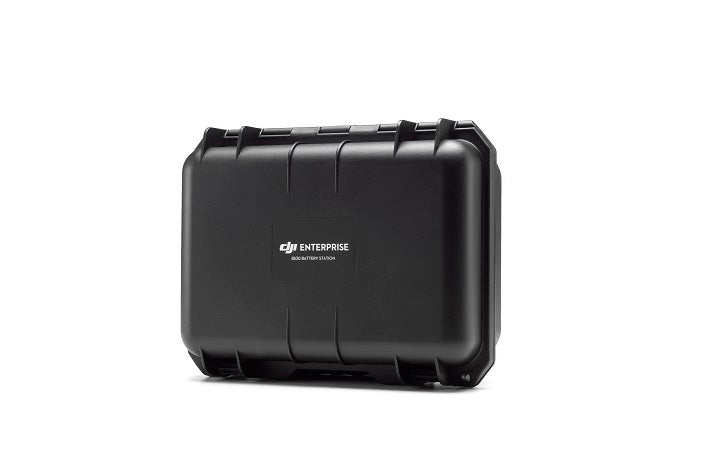

BS30 Intelligent Battery Station

A smart, portable solution with multiple charging modes to meet your mission needs. Capable of charging four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, pairs are charged one at a time, with one pair taking just 30 minutes to charge from 20-90%.

TB30 Intelligent Flight Battery

Each battery supports self-heating for cold environments, hot-swapping for fast turnarounds, and 400 charge cycles for increased operational efficiency.

DJI Cellular Module

Provides 4G based transmission link between the drone and remote controller, while also enabling internet connection for the remote controller.

DJI Dock

DJI Docks are rugged, reliable, and are built to operate 24/7, day or night, rain or shine. Each DJI Dock houses a Matrice 30 where it lands, recharges, takes off, and executes missions programmed in DJI FlightHub 2.

Complete Cloud Control

With FlightHub 2, unlock full DJI Dock functionality from the cloud. Schedule missions, create and edit flight routes, and manage data collected.

Fast Charging, Fast Turnaround

Fast charge and take off thanks to TEC air conditioning that cools the drone batteries, enabling charging from 10-90% in just 25 minutes.

Day or Night, Rain or Shine

DJI Docks are built to withstand the elements, so you don't have to. Ingress Protection: IP55

Operating Temperature: -35℃ to 50℃ Surge Protection: 40kA

Backup Battery: 5 Hours

Active Temperature Control: For fast charging and drone safety 6 Months Maintenance Interval.

Simple Setup

DJI Docks weigh less than 100 kg and have a <1 square meter footprint. Setup requires ground fixation, access to power and internet, and quick configuration via the DJI RC Plus remote controller.
