Atmos - Marlyn UAV
*PLEASE CONTACT FOR MORE INFORMATION
Fly in the Toughest Winds, up to 45km/h
Surveyors deserve better than 30km/h wind limits. That's why with Marlyn you can take off, survey, and land comfortably in winds of up to 45km/h (28mph), more than any other survey drone.
Operate from Any 2x2m Area
Take off like a Helicopter and Fly like an Airplane. With Marlyn you can operate from anywhere and cover up to 150Ha (370 Acres) per flight. No more finding large clear areas for belly landing!
Engineered and manufactured in Europe
To ensure high-end quality and ethical trade standards, we believe in keeping things local. That’s why all of our Marlyns are designed, created, and assembled right here in the Netherlands.
How is Marlyn helping surveyors?
Increased Efficiency
Take your data capture to the next level. Marlyn speeds up your data capture by surveying large areas up to 30x faster than traditional land surveying methods, and up to 10x faster than Multicopter drones.
Survey Anywhere
Small take-off areas? No problem, Marlyn only needs a 2x2m flat area to take off and land allowing you to be flexible in your operations. Easy backpack transport is also perfect for those heading off the beaten track.
Survey Any Time
With Marlyn 'no-go' days are turned into routine projects. You get the benefit of flying in wind conditions of up to 45km/h at ground level, and 55km/h at cruise altitude resulting in up to 30% more days per month.
Absolute Accuracy
Accuracy is king in the surveying world. Attain accuracies as low as 1cm with Sony’s 42MP, full-frame RX1RII combined with Topcon's PPK module, an Aerial surveying match made in heaven!

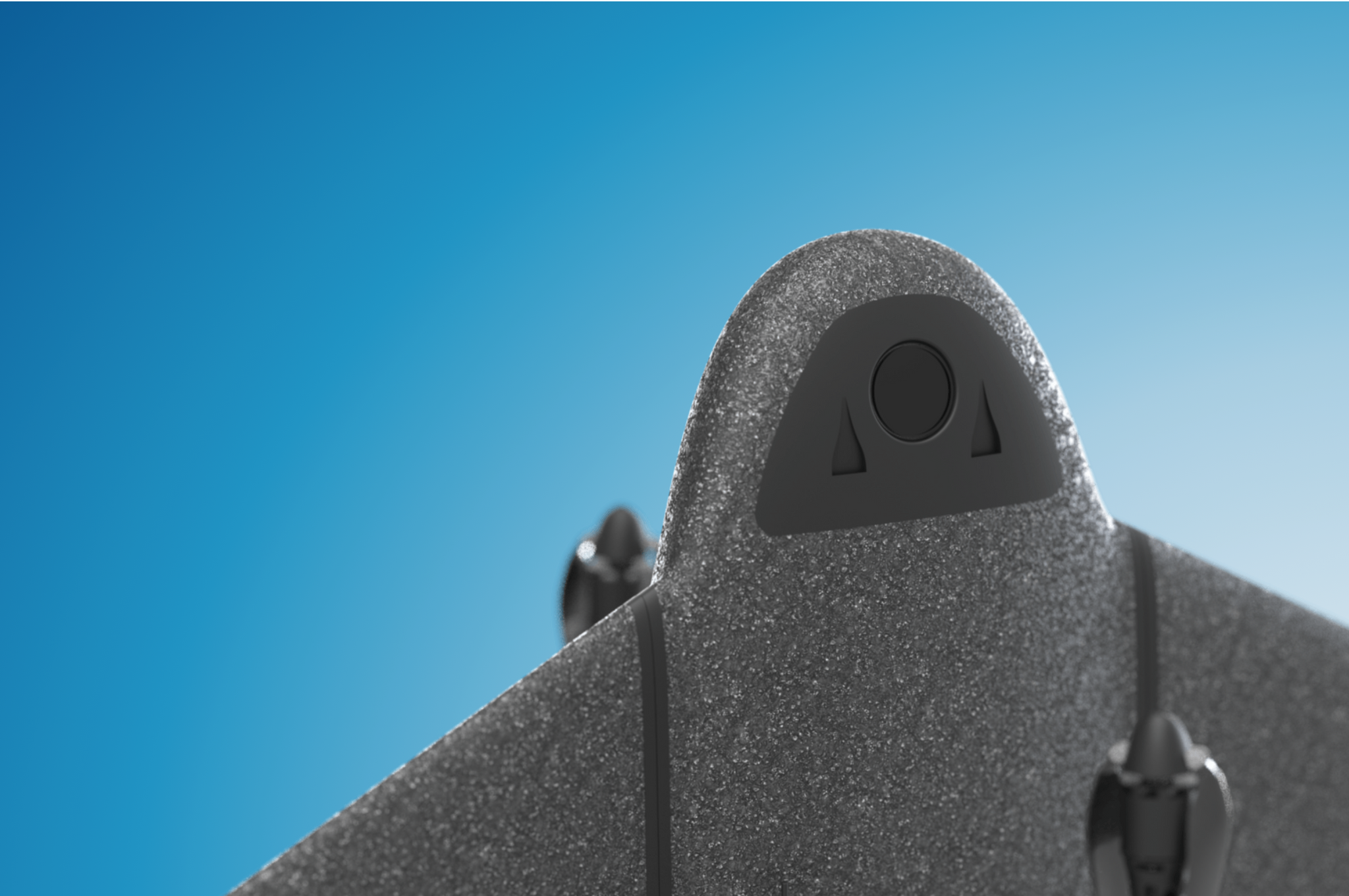

Dedicated Survey Cameras
Marlyn’s cameras are modular, meaning they're swappable in minutes. A variety of RGB and specialty cameras are available to suit your project requirements.

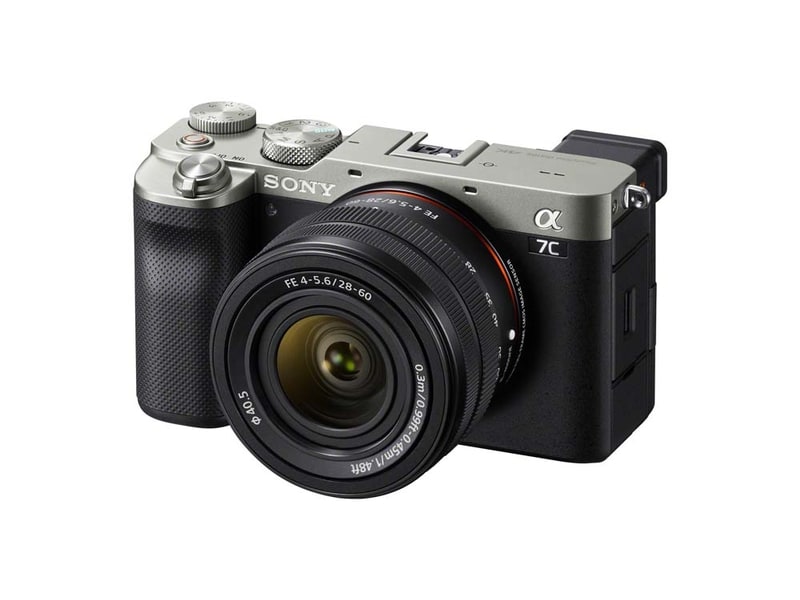

Sony A7C
Sensor layout - Full Frame
Spectral bands - RGB
Sensor size - 35.9 x 24 mm
Shutter type - Leaf shutter
Pixels array - 6000 x 4000 px

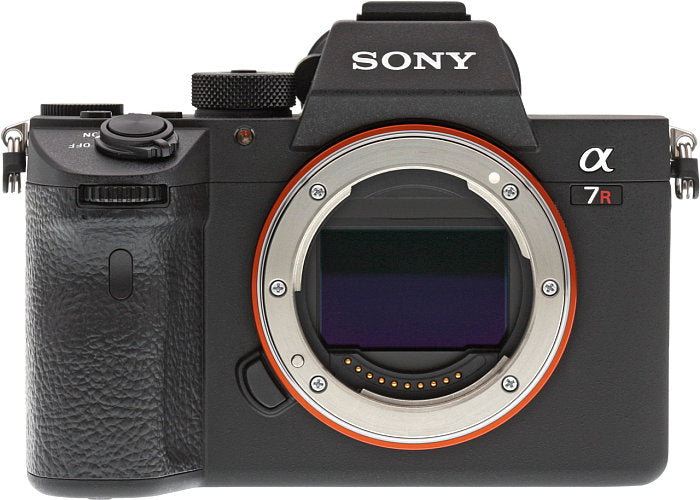

Sony A7RIII
The ideal survey camera, with a 42 Megapixel Full-Frame sensor capable of producing crystal-clear images down to 0.85cm GSD. With the A7RIII you’re assured of the best data on all your survey applications.
Sensor layout - Full Frame
Spectral bands - RGB
Sensor size - 35.9 x 24 mm
Shutter type - Focal Plane Shutter
Pixels array - 7952 x 5304 px
Sony A7RIV
Sony’s 61 Megapixel Full-Frame sensor meets Zeiss’ renowned 21mm lens, offering cm-level imagery and a whopping 60% more area per flight. The A7RIV makes even the biggest areas part of your everyday offering.
Sensor layout - Full Frame
Spectral bands - RGB
Sensor size - 35.7 x 23.8 mm
Shutter type - Focal Plane Shutter
Pixels array - 9504 x 6336 px

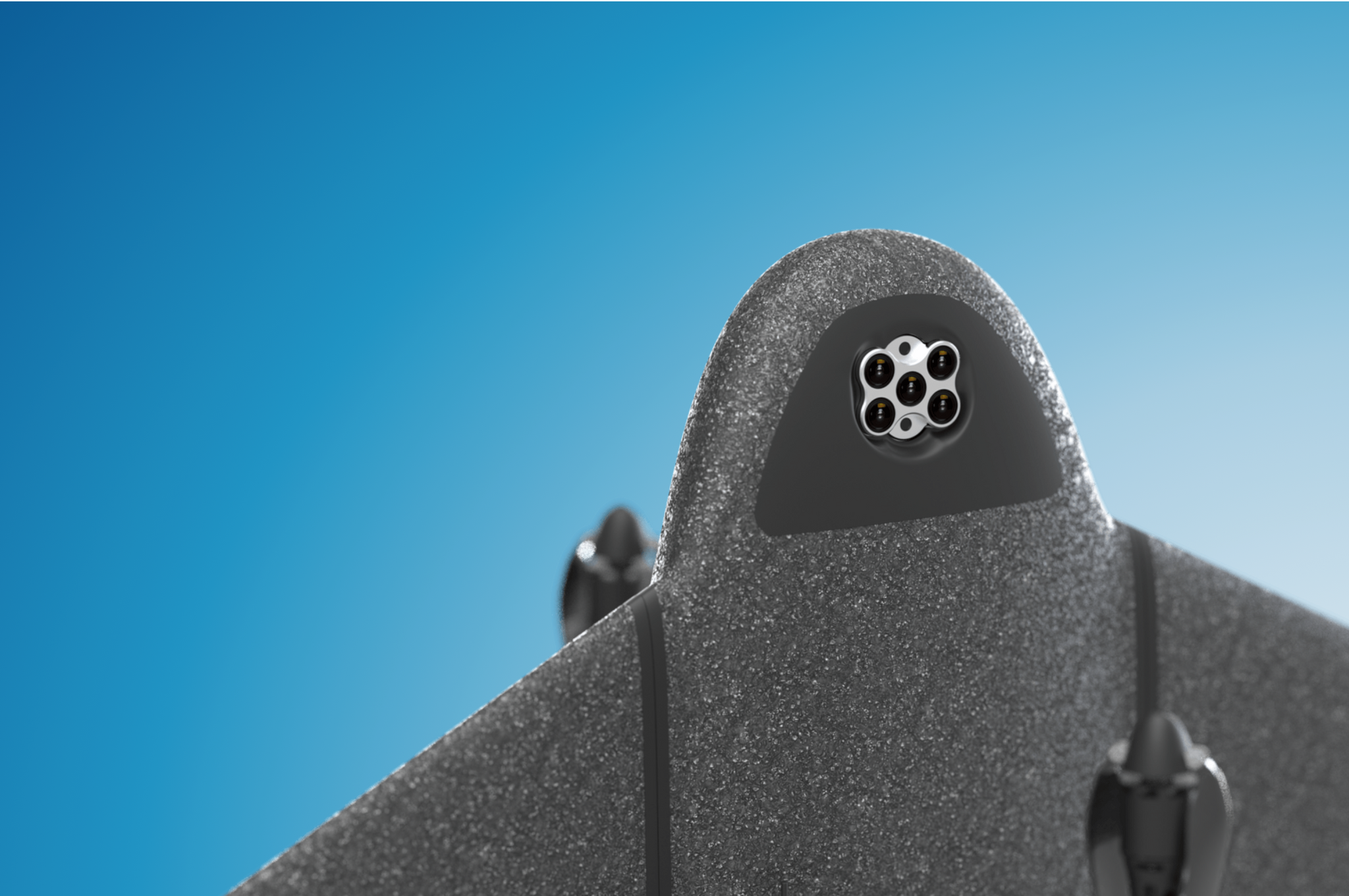

MicaSense RedEdge-P
Sensor layout - 5 individual sensors +1 panchromatic sensor
Spectral bands - RGB, Red Edge, NIR
Pixels array MS band - 1456 x 1088 (1.6MP)
Pixels array Panchromatic band - 2464 x 2056 (5.1MP)
Lowest GSD - 2cm/pix [Estimation TBC]

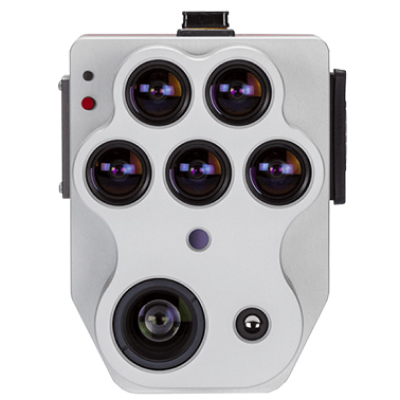

MicaSense Altum PT
Sensor layout - 5 individual sensors +1 panchromatic sensor + FLIR LWIR
Spectral bands - Red, Green, Blue, Red Edge, NIR 8-14 μm
Pixels array MS Band - 2064 x 1544 (3.2MP)
Pixels array PAN Band - 4112 x 3008 (12MP)
Pixels array Thermal - 320 × 256
Thermal - FLIR LWIR thermal infrared 7.5-13.5um
Lowest GSD - 1.27cm/pix [Estimation TBC]
How does Marlyn help you fly more?
Reduce time and cost with PPK.
Get results easily with the right software.
Developed with ease of use and Data Quality in mind, your in-field operation software Navigator and geo-referencing Geotagger will allow you to get survey-quality data without all the hassle and inaccuracies typically associated with certain mapping drones.
Learn More
Operation
2 x 2 m [7 x 7 ft ] required
5 minutes
Yes
Automatic
Automatic (configurable)
65 km/h [40 mph]
Take off: 45 km/h [28 mph]
Cruise: 55 km/h [34 mph]
Landing: 45 km/h [28 mph]
50 mins*
Integrated intelligent checklist in Atmos Navigator
-10°C to +40°C [14°F to 104°F] (Above 35°C operating restrictions apply)
Not required with optional PPK module
